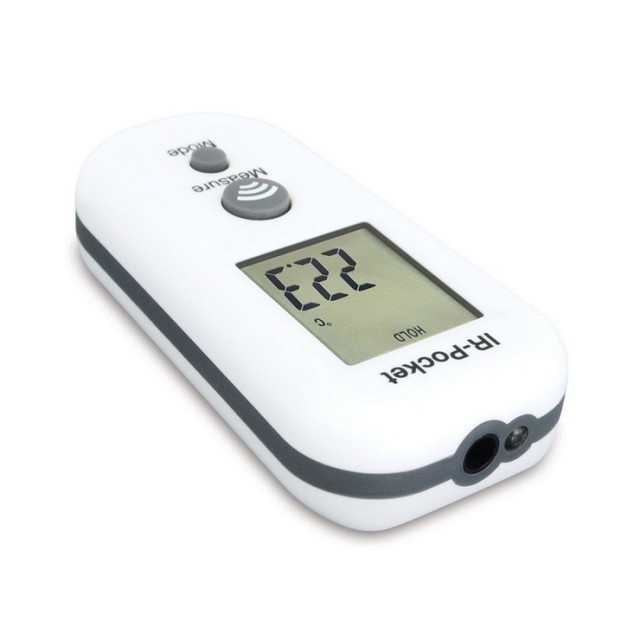

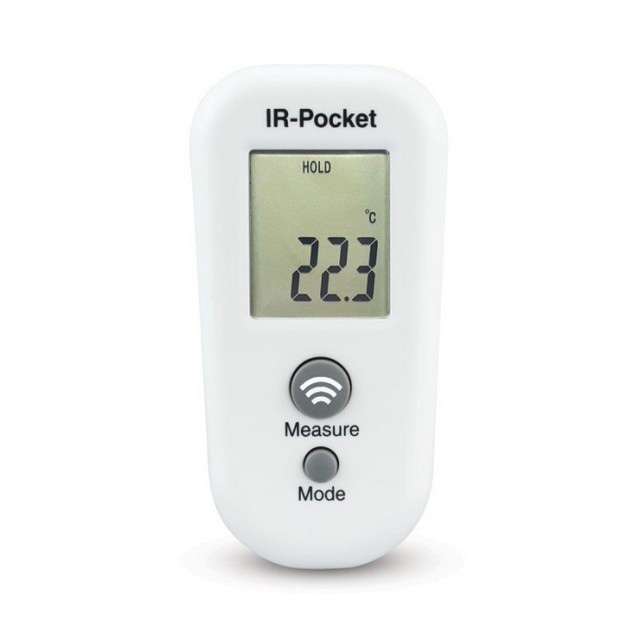

IR-Pocket Infrared Thermometer
Highlights:
IR-Pocket infrared thermometer with max/min, display hold and lock functions
- LED spot alignment
- Display hold function
- Lock function for continuous measurement
- Max/min memory function
Product code: 814-060
Description
The IR-Pocket thermometer is a non-contact infrared thermometer that has an easy to read, LCD display with low battery indication. Simply aim at the target and press the measure button to display the surface temperature instantly. The IR-Pocket indicates temperature over the range of -9.9 to 199.9 °C with an assured accuracy of ±2% of reading or ±2°C whichever is greater.
The IR-Pocket thermometer features a two-button keypad, pressing the mode button allows the user to access a variety of functions, i.e. max/min, °C/°F, lock and emissivity. The lock function allows for continuous temperature measurement and the emissivity is adjustable so the user can measure a variety of surface types. An auto-power off facility automatically turns the instrument off after 15 seconds, maximising battery life.

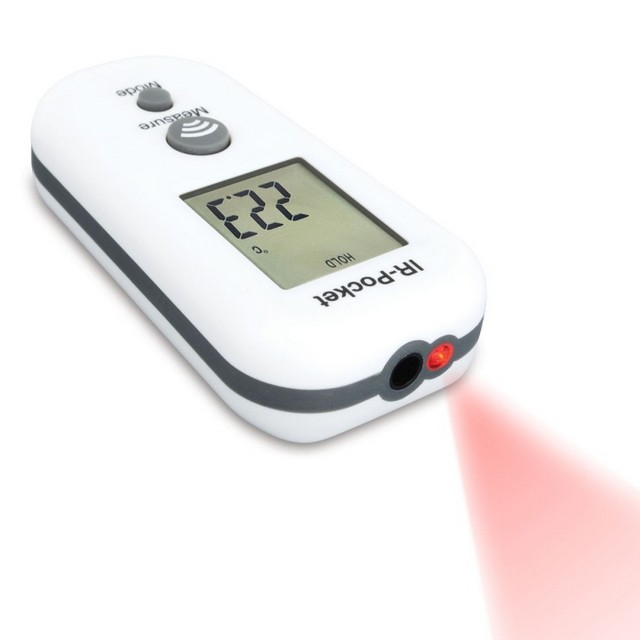

The IR-Pocket infrared incorporates LED spot alignment, which allows the user to precisely target the diameter of the area to be measured. The LED pointer is safer for the eyes than laser pointers. As you move closer or further from the target the LED spot changes diameter indicating the area being measured.
The default emissivity is 0.95 but is adjustable to enable temperature measurement of a variety of surface types.
Product information for download:
814-060-IR-Pocket User guide
814-060 C of C
IR Care Guide
Product Detail Reference 814-060 | |
Data sheet | |
Range: | -9.9 to 199.9°C |
Max/Min: | Yes |
Resolution: | 0.1 °C/°F |
Accuracy - Infrared: | ±2.5 °C or ±2.5 % of reading whichever is greater |
Field of View: | target ratio 1:1 |
Emissivity: | 0.95 default - adjustable 0.1 to 1.00 |
Battery: | 2 x 1.5 volt AAA |
Battery Life: | 20 hours continuous use |
Display: | custom LCD |
Dimensions: | 25 x 52 x 100mm |
Weight: | 88 grams |
Case Material: | ABS plastic |
Guarantee: | one year |
Measurement Scale: | Celsius/Fahrenheit |
