RayTemp® 38 - Infrared Thermometer for
Measuring Small Targets
Highlights:
RayTemp 38 infrared non-contact thermometer for measuring small surface areas at
greater distances
- Auto-power off & backlight functions
- Wide temperature range -59.9 to 999.9 °C
- Robust housing for durability
- Target distance/diameter ratio of 50:1
Product code: 814-038
Description

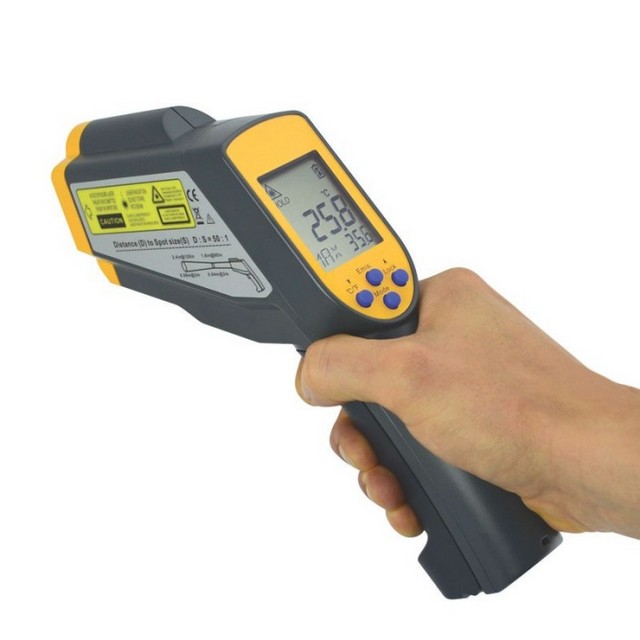

The RayTemp 38 is a professional infrared, gun-shaped, non-contact thermometer with dual laser dot alignment. The thermometer incorporates a 50:1 optic ratio (target distance/diameter ratio), this enables users to measure small targets from a distance. The user stands a safe and comfortable distance from the target, points the thermometer at the surface to be measured, pulls the trigger and instantly reads the temperature. Ideal for measuring the temperature of any item that is difficult to reach. This enables the user to measure most surfaces accurately and quickly.

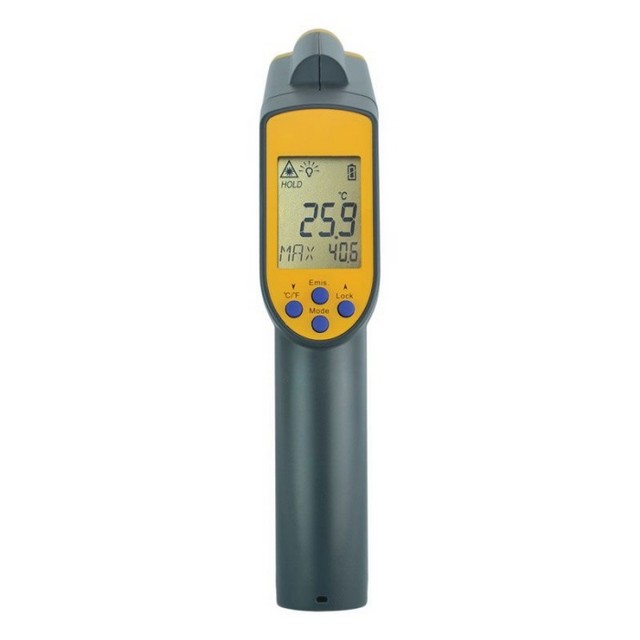

This infrared thermometer measures the surface temperature over the range of -59.9 to 999.9°C with a 0.1°C (-9.9 to 199.9°C) or 1°C resolution. The RayTemp 38 incorporates an auto power off facility that turns the instrument off after 60 seconds, maximising battery life. This function can be disabled, if required. Each unit incorporates a clear, easy to read, backlit custom LCD display that indicates both the temperature and the emissivity. The thermometer features a four-button keypad, allowing the user to select the mode required, i.e. max, min, differential and average temperatures, view the max/min high and low alarms and adjust the emissivity from 0.1 to 1.0 in 0.01 increments (default set at 0.95).

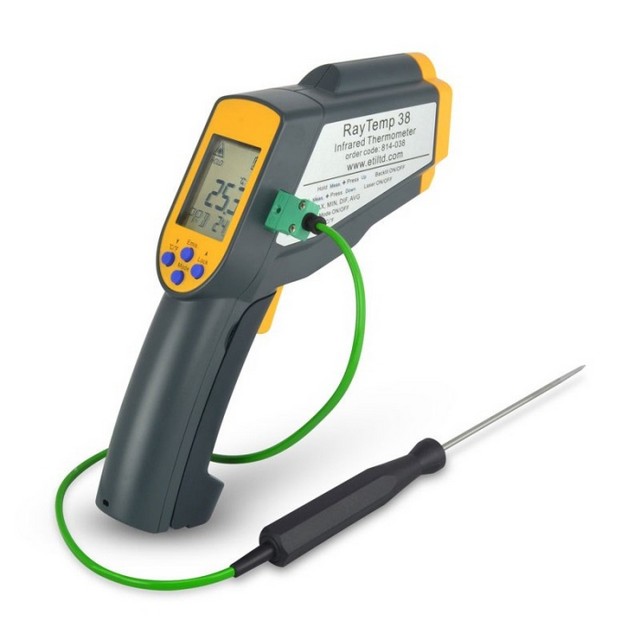

The RayTemp 38 is two instruments in one as it incorporates a thermocouple socket that will accept a type K thermocouple probe
Product information for download:
RayTemp 38 User Manual
814-038 C of C
IR Care Guide
Product Detail Reference 814-038 | |
Data sheet | |
Range - Infrared: | -59.9 to 999.9 °C |
Range - Probe: | -64 to 1400°C |
Max/Min: | Yes |
Resolution: | 0.1 °C/°F |
Accuracy - Infrared: | ±2 °C or ±2 % of reading whichever is greater |
Accuracy - Probe: | ±1 °C or ±1 % of reading whichever is greater |
Field of View: | target ratio 50:1 |
Emissivity: | 0.95 default - adjustable 0.01 to 1 |
Battery: | 2 x AAA alkaline |
Battery Life: | 180 hours continuous use |
Display: | custom LCD |
Backlight: | Yes |
Dimensions: | 47 x 170 x 240mm |
Weight: | 395 grams |
Case Material: | ABS plastic |
Guarantee: | one year |
Measurement Scale: | Celsius/Fahrenheit |
